Recommended Sizing

• X-Small (501mm) 5'0"-5'3"
• Small (508mm) 5'3"-5'6"
• Medium (520mm) 5'6"- 5'9"
• Large (534mm) 5'9"- 6'0"

General specifications:

• UCI approved
• Sizes: XS, S, M, L, (XL not yet available)
• Material: Japanese Toray T1000 (specific areas) and T700 Carbon Fibre
• Finish: UD, Velobike M2 (2022 Livery)
• Coating: matte clear
• Weight: 1850g ± 50g (frameset and fork size large)
• Built and tested to the ISO 4210 standards as a requirement for racing bicycle framesets.

Component integration information:

• BSA threaded bottom bracket
• Clearance for up to 70 tooth Chainrings (42mm chainline)
• 1 1⁄8" Steerer Tube
• 100mm M9 front dropout spacing
• 120mm M10 rear dropout spacing
• Built-in rear axle tensioners

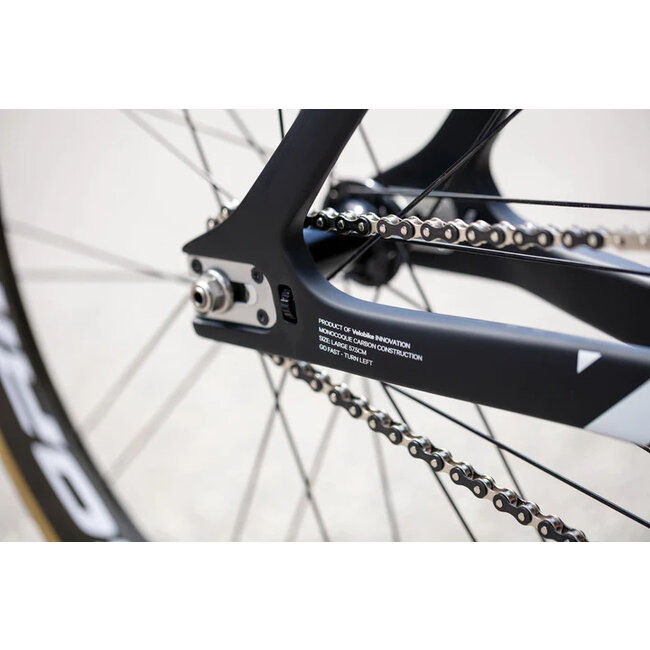

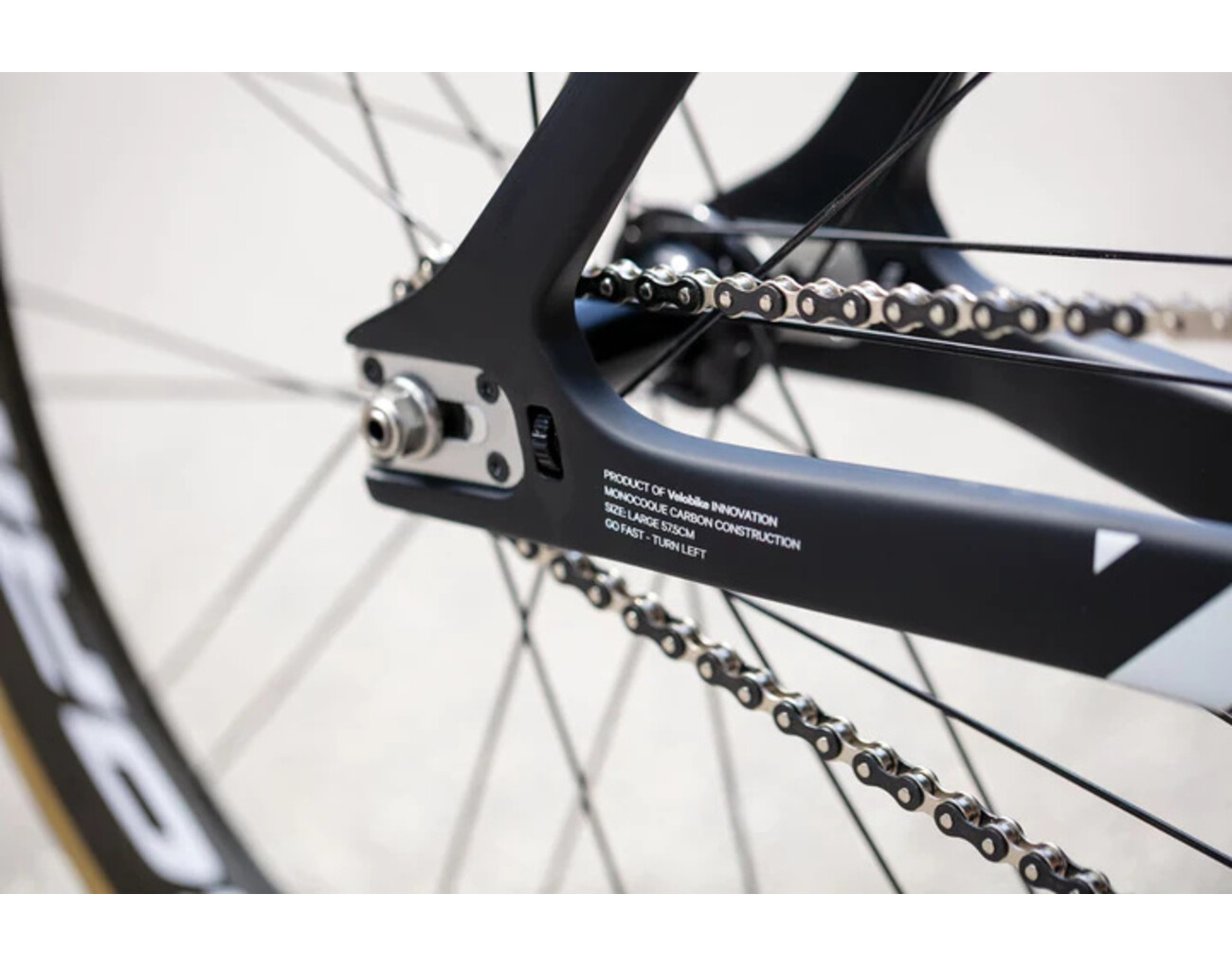

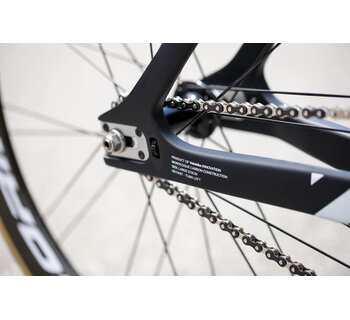

• Replaceable rear dropouts
• 700x25c tire clearance
• Steel saddle rail mount (round). Carbon saddle rail clamp (oval) is available as an extra.

Warranty information:

• 2 year limited warranty

Frameset includes:

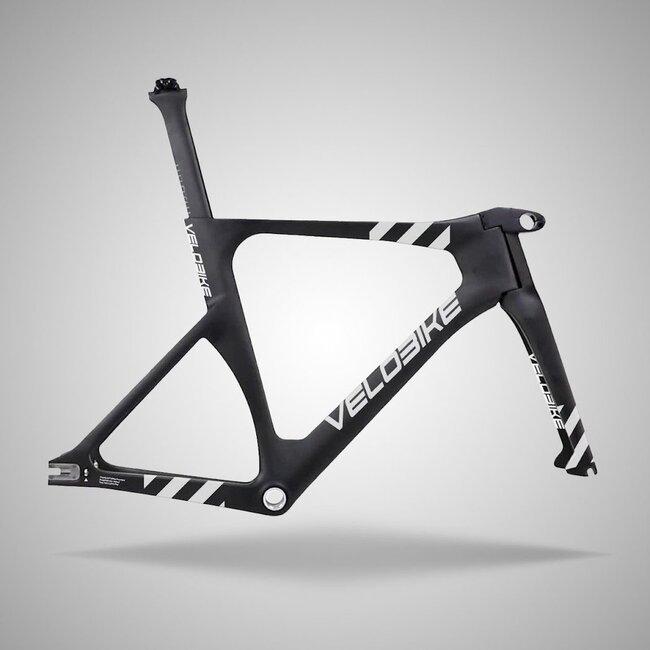

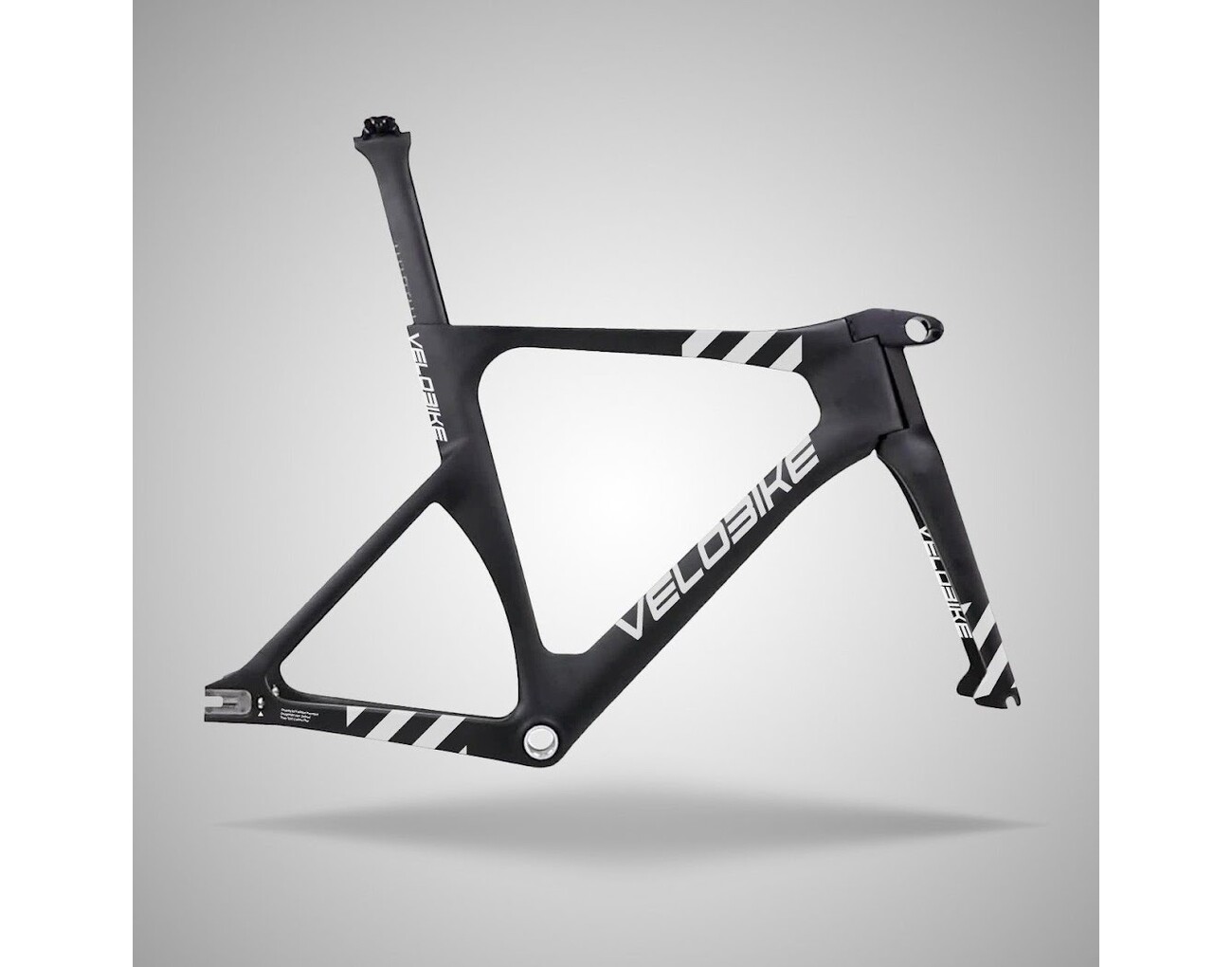

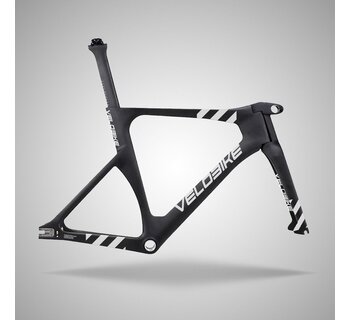

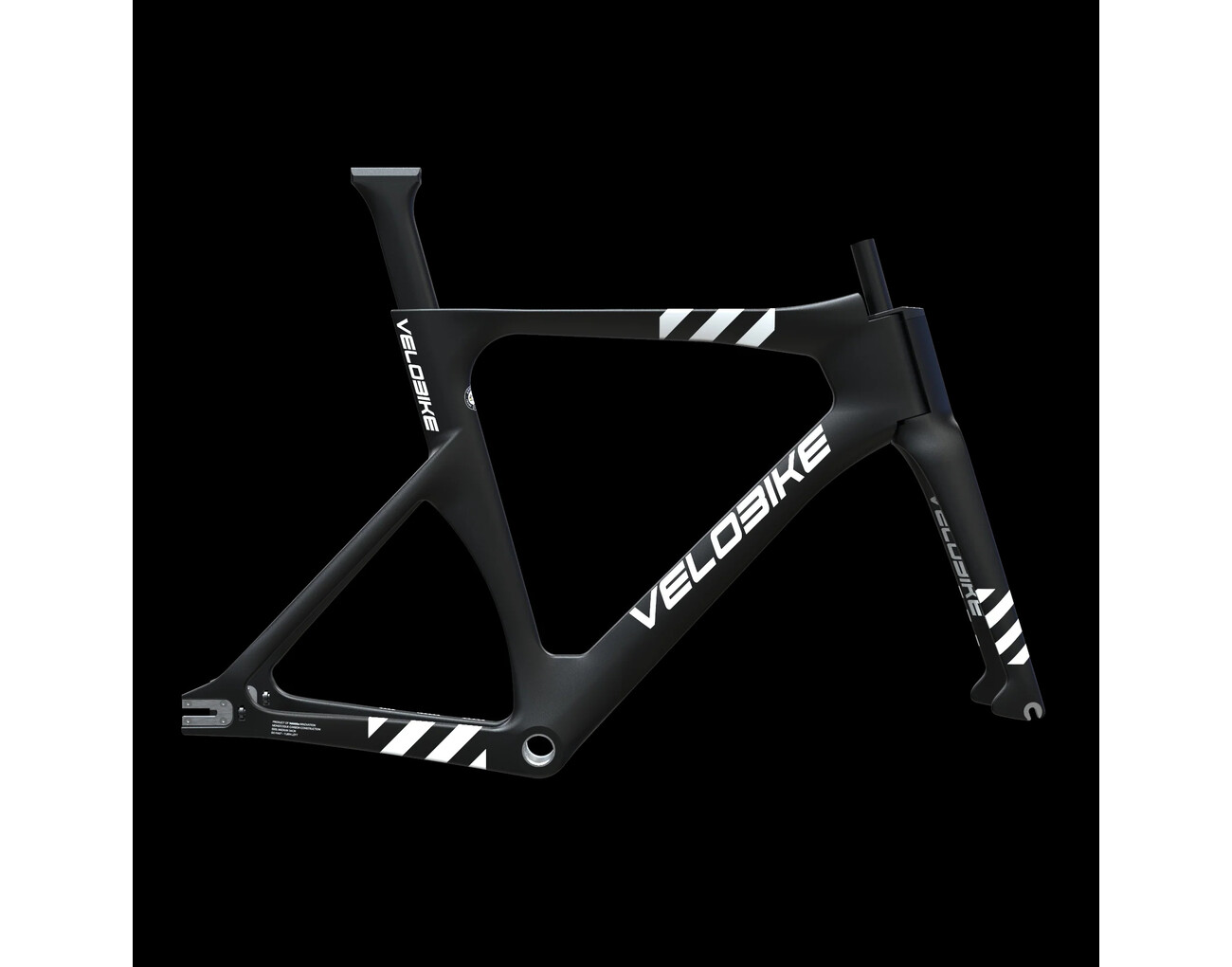

• UCI approved M2 Frame x1 (of chosen size)
• UCI approved M2 Fork and Fork Topper x1 (of corresponding size to the frame)
• M2 seatpost x1
• Saddle clamp (steel saddle rails) x1
• Seatpost clamp x1
• Rear dropout plates x2
• Headset bearings and bearing spacers x1 set
• Headset compression plug x1

Optional extras and spare parts:

• M2 Fork
• M2 seatpost
• Carbon saddle rail clamp
• Seatpost clamp
• Rear dropout plates
• Headset Bearings and bearing races
• Headset spacers
• Dropout protectors

Shipping information:

• These Framesets are made in China. Due to the size, we ship these directly from China straight to your door. The item origin will be marked as China, not New Zealand.
• Framesets will be shipped via either UPS or FedEx.
• Our normal shipping rates apply, we don't charge any extra shipping costs.
• Any other non-Frameset items in your order will be shipped separately to you, straight from New Zealand.
