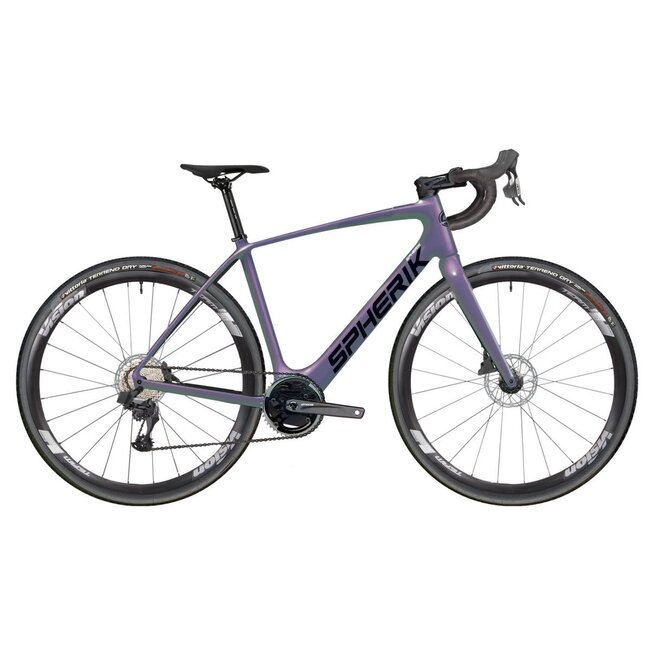

Log serious mileage and climb effortlessly on this nimble, fun-to-ride carbon gravel bike. With its ultra-compact drivetrain and battery, the E-SRG looks, sounds, feels, and weighs like a traditional bike, but will give you reliable, natural assistance at all times. From 25.4 lbs / 11.5 kg
Made in Québec.
| Size | XXS | XS | S | M | L |
|---|---|---|---|---|---|
| ST (mm) | 420 | 455 | 490 | 525 | 560 |
| TTH (mm) | 516.8 | 547 | 564.9 | 582.2 | 599.4 |
| CS (RC) (mm) | 419.2 | 419.2 | 419.2 | 419.2 | 419.2 |
| BBD (mm) | 70 | 70 | 70 | 70 | 70 |
| HT (mm) | 135 | 155 | 180 | 215 | 250 |
| ASA (degrés) | 74° | 74° | 74° | 74° | 74° |
| HTA (HA) | 71° | 71° | 71° | 71° | 71° |
| WB (mm) | 1004 | 1024.6 | 1044.2 | 1063.6 | 1083 |
| FL (mm) | 390 | 390 | 390 | 390 | 390 |
| FC (mm) | 584.9 | 605.4 | 625 | 644.4 | 663.8 |
| Reach (mm) | 366.5 | 380.5 | 392 | 400 | 408 |
| Stack (mm) | 550.6 | 569.5 | 593.1 | 626.2 | 659.3 |
| SOH (mm) | 713.1 | 733.3 | 760 | 791.3 | 822.8 |
| SIZE | XXS | XS | S | M | L |
|---|---|---|---|---|---|
| Cyclist Height | 148cm -158cm ( 4’10” – 5’2″ ) |
157 cm – 167 cm ( 5’2″ – 5’5″ ) |
166 cm – 176 cm ( 5’5″ – 5’9″ ) |
175cm – 185 cm ( 5’9″ – 6’1″ ) |
184cm -194cm ( 6′ – 6’4″ ) |
