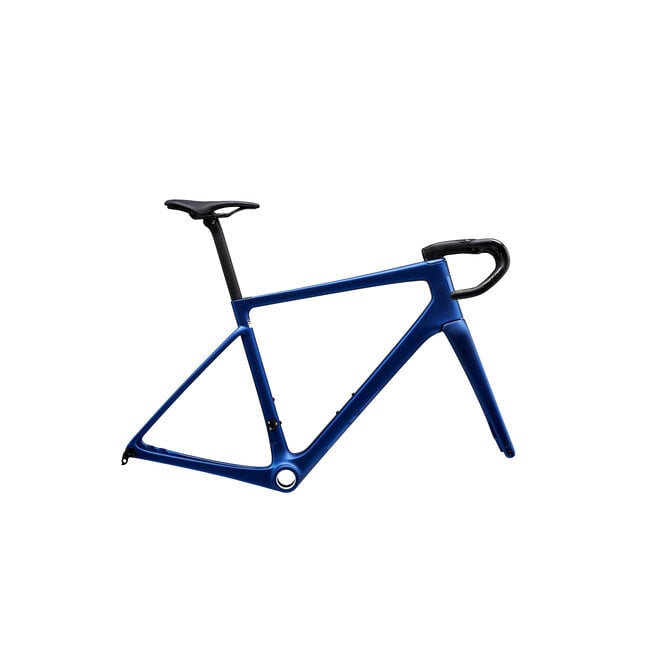

The ENVE Melee is a high-performance road bike designed for aerodynamic efficiency and responsiveness. With optimized geometry and integrated cable routing, it delivers a smooth and fast ride, making it ideal for competitive cycling. Read more.
We offer a package deal on ENVE framesets. This package contains the following items:
To view what other packages we offer, check out the related items, or search "ENVE Package" on our online store.
Please note that the saddle visible in the pictures is not included.
The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.
An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
| Frame Material | ENVE M.O.D Carbon |
| Fork Material | ENVE M.O.D Carbon |
| Target Application | Road Race/Performance |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43, 39 |
| Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
| Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.5, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-32c |
| Maximum Listed Tire Clearance | 35c |
| Frame Routing | Internal |
| Handlebars | SES AR (38, 40, 42, 44, 46) |
| Stem | ENVE Integrated (80, 90, 100, 110, 120, 130) |
| Seat Posts | Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset |
| Handlebars | SES AR (38, 40, 42, 44, 46) |
| Stem | ENVE Integrated (80, 90, 100, 110, 120, 130) |
| Seat Posts | Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset |
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (Melee requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (Melee requires continuous housing for FD) |
| Campy Wired EPS | No |
| Campy Wireless EPS | Yes |
| Fork |
Fork is 160mm only
|
| Frame |
Rear brake/frame is 140mm or 160mm with adapter.
|
| Package | PN | Description |
| Frame | ||
| Fork (Rake is Frame Size Dependent) | ||
| Installed On Fork | 200-2009-008 | Front Axle |
| Installed On Frame | 000-0050-951 | Rear Axle |
| Installed On Frame | 100-5003-014 | Front Derailleur Mount |
| Installed On Frame | 100-5003-013 | Rear Derailleur Hanger |
| Installed On frame | 000-0050-903 | M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head) |
| Installed On Frame | 000-0050-946 | Fender Mount Set Screws (M5x0.8x10mm) |
| Installed On Frame | 100-5003-904 | Chainstay Protector |
| Disc Brake Rotor Protector | ||
| In Bag | 100-5003-903 | Front Derailleur Housing Grommet |
| Front Derailleur Di2 Grommet | ||
| Front Derailleur Cable Hole Grommet | ||
| In Bag | 100-5003-901 | Seatpost Clamp Kit |
| In Bag | 100-5003-014 | Headset Kit |
| In Bag | 100-5003-XXX | Top Headset Bearing Cover (Frame Color Dependent) |
| In Bag | 200-0000-032 | Fork Compression Plug |
| In Bag | 000-1000-971 | Fork Brake Caliper Bolts and Washers (M5x0.8x40mm Torx Button Head Screw, SS) |
| In Bag | Owner's Manual | |
| In Bag | Torque Wrench (Includes Extra Accessory Bits) | |
| In Bag | Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam) |
